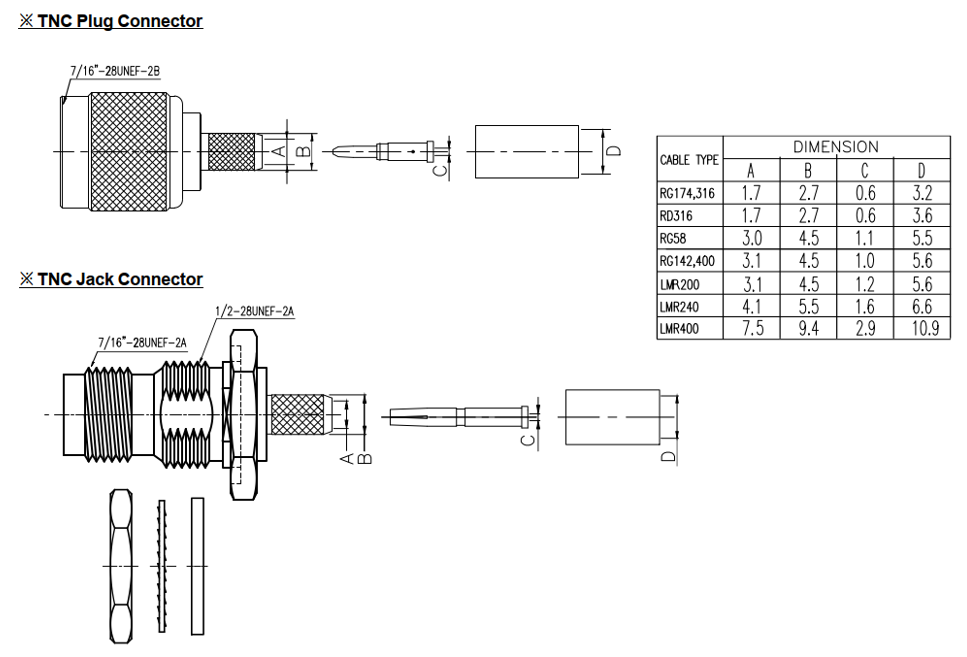

TNC Connector

A TNC connector is a type of coaxial connector that is very similar in design and function to the BNC connector. It is often used in RF (Radio Frequency) and microwave applications where a secure connection and high-frequency performance are required. While the BNC connector is typically used up to around 4 GHz, the TNC connector extends the frequency range up to approximately 11 GHz. This makes it suitable for higher frequency applications that require improved performance.

Electrical

Impedance 50Ω
Voltage Rating ≥500 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 1500 VRMS min.
Contact Resistance Center Contact 1.5 mΩ max.,
Outer Contact 1 mΩ max.

Material

Parts Material Finish
Body Brass Nickel
Inner Contact Brass
Beryllium Copper Phosphor Bronze
Gold
Insulator PTFE, POM None
Gasket Silicone Rubber Black or Red
Crimp Ferrule Annealed Copper Nickel

Note: Other Material/Finish is Available on Request.
