F Connector

An F connector is a type of coaxial connector used primarily for connecting coaxial cables to devices in audiovisual and telecommunications systems. It is commonly used in cable television (CATV), satellite television, and other video distribution systems. F connectors are prevalent in residential and commercial settings due to their ease of use and strong signal transmission capabilities. They are also widely used for networking applications, such as connecting broadband cable modems or routers to the cable service provider's network.

Electrical

Impedance 75Ω
Voltage Rating ≥500 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 1500 VRMS min.
Contact Resistance Center Contact 10 mΩ max.,
Outer Contact 1 mΩ max.

Material

Parts Material Finish
Body Brass Nickel
Inner Contact Brass
Beryllium Copper Phosphor Bronze
Nickel
Insulator PTFE, POM None
Crimp Ferrule Annealed Copper Nickel

Note: Other Material/Finish is Available on Request.

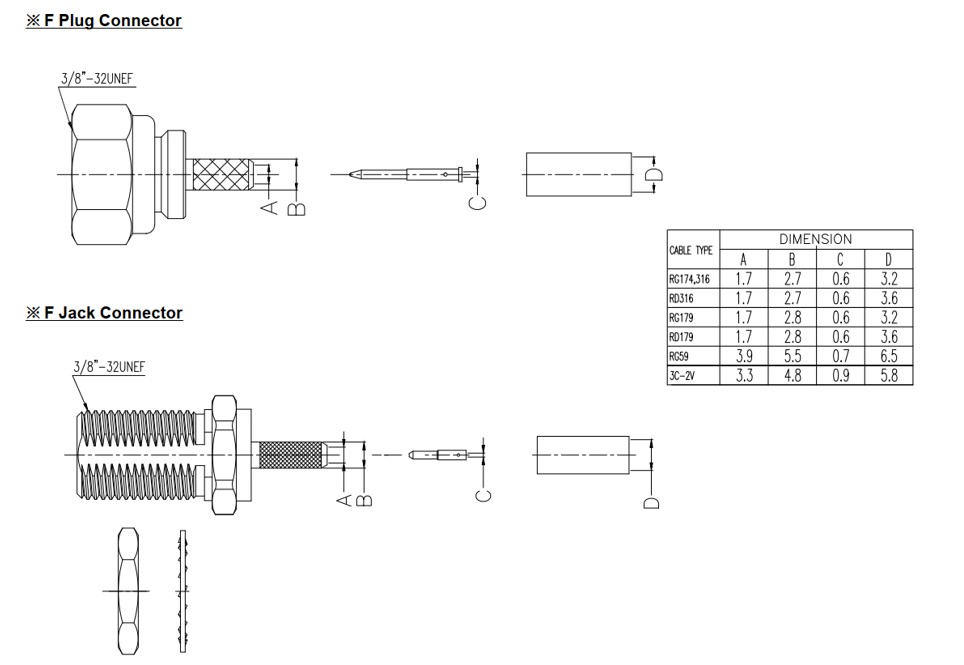

Reference specifications
