FME Connector

The FME connector is a type of coaxial connector commonly used in wireless communication systems and mobile devices. It is known for its compact size and versatility, making it suitable for various applications in the telecommunications industry. It's important to note that FME connectors are typically used with low-power applications and are not designed for high-frequency or high-power applications. For such applications, connectors like N or TNC connectors are more suitable. Its threaded design, small size, and ease of installation make it a popular choice for applications that require flexible and reliable connections in limited spaces.

Electrical

Impedance 50Ω
Voltage Rating ≥500 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 1000 VRMS min.
Contact Resistance Center Contact 10 mΩ max.,
Outer Contact 5 mΩ max.

Material

Parts Material Finish
Body Brass Nickel
Inner Contact Brass
Beryllium Copper
Phosphor Bronze
Gold
Insulator PTFE, POM None
Gasket Silicone Rubber Black or Red
Crimp Ferrule Annealed Copper Nickel

Note: Other Material/Finish is Available on Request.

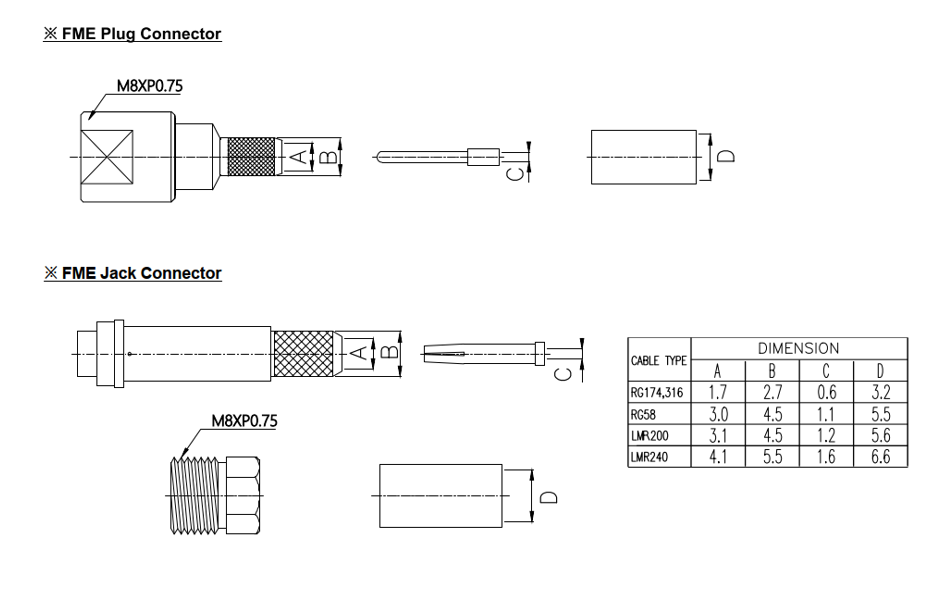

Reference specifications
