BNC Connector

A BNC connector is a type of coaxial connector commonly that widely used in applications such as telecommunications, video equipment, computer networks, and other high-frequency electronic systems. It features a bayonet-style coupling mechanism, making it easy to connect and disconnect without the need for specialized tools. The BNC connector provides a secure and reliable connection for transmitting signals with minimal interference.

Electrical

Impedance 50Ω / 75Ω
Voltage Rating ≥500 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 1500 VRMS min.
Contact Resistance Center Contact 1.5 mΩ max.,
Outer Contact 1 mΩ max.

Material

Parts Material Finish
Body Brass Nickel
Inner Contact Brass
Beryllium Copper
Phosphor Bronze
Gold
Insulator PTFE, POM None
Gasket Silicone Rubber Black or Red
Crimp Ferrule Annealed Copper Nickel

Note: Other Material/Finish is Available on Request.

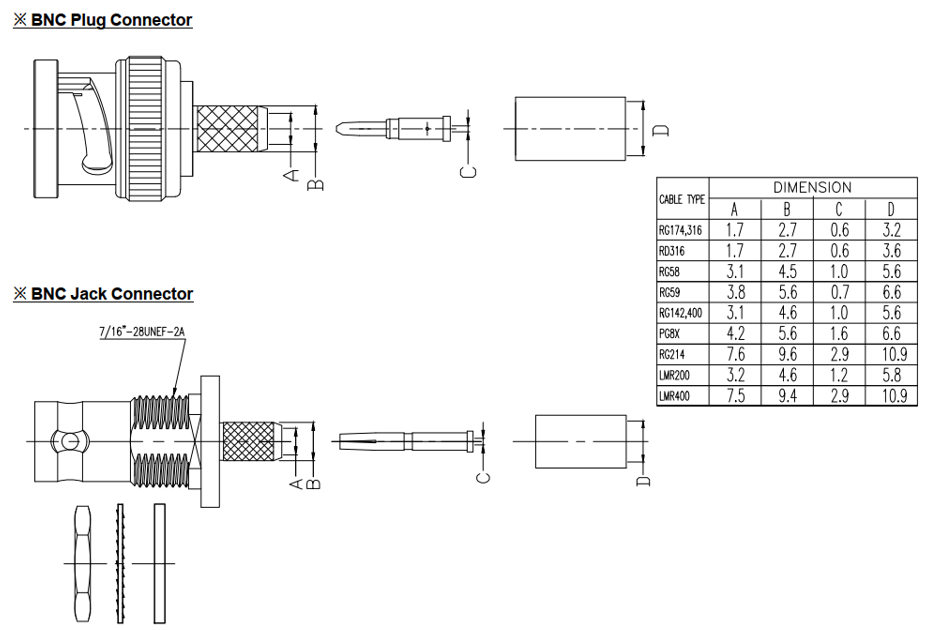

Reference specifications
