N Connector

An N connector is a type of coaxial connector commonly used in high-frequency applications, particularly in RF (Radio Frequency) and microwave systems. It is known for its robust construction, low signal loss, and high power-handling capabilities. N connectors are commonly used in a variety of applications, including wireless communications, broadcast systems, radar systems, cellular networks, and laboratory equipment. They are designed to handle high-frequency signals with low loss and maintain signal integrity. Their threaded design ensures a secure connection, making them suitable for applications where reliability and stability are crucial.

Electrical

Impedance 50Ω
Voltage Rating ≥1000 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 2500 VRMS min.
Contact Resistance Center Contact 1 mΩ max.,
Outer Contact 1 mΩ max.

Material

Parts Material Finish
Body Brass Nickel
Inner Contact Brass
Beryllium Copper Phosphor Bronze
Gold
Insulator PTFE, POM None
Gasket Silicone Rubber Black or Red
Crimp Ferrule Annealed Copper Nickel

Note: Other Material/Finish is Available on Request.

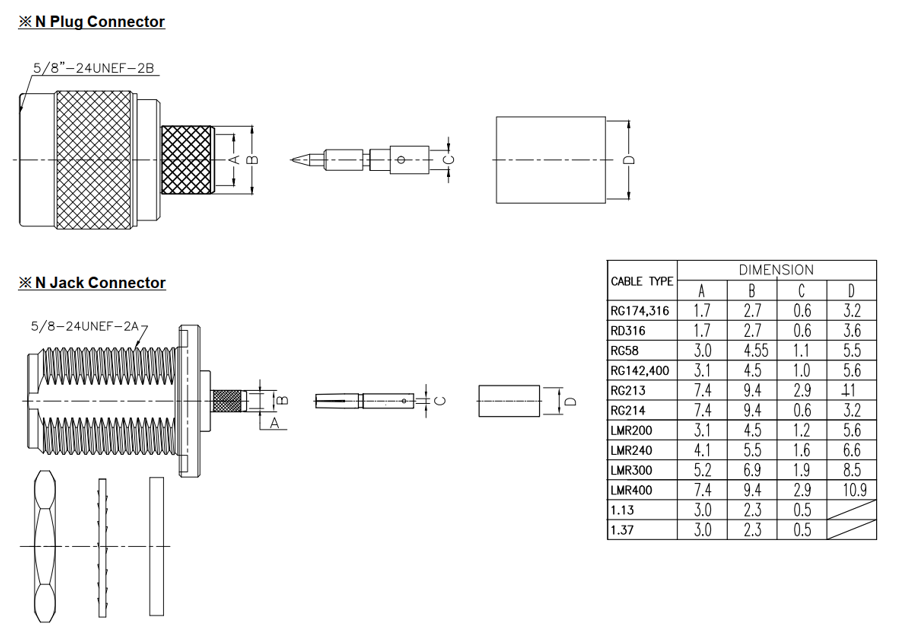

Reference specifications
