SMA Connector

The SMA connector is a type of coaxial connector commonly widely used in applications such as wireless communications, antennas, test and measurement equipment, and other high-frequency systems. Its small size, robust construction, and excellent high-frequency performance make it a popular choice for wireless communication systems and other applications that require accurate signal transmission at high frequencies.

Electrical

Impedance 50Ω
Voltage Rating ≥500 VRMS max. (depending on cable)
Insulation Resistance ≥ 5GΩ min.
Dielectric Withstanding Voltage 1000 VRMS min.
Contact Resistance Center Contact 3 mΩ max.,
Outer Contact 2 mΩ max.

Material

Parts Material Finish
Body Brass Gold
Inner Contact Brass
Beryllium Copper
Phosphor Bronze
Gold
Insulator PTFE None
Gasket Silicone Rubber Red or Black
Crimp Ferrule Annealed Copper Gold

Note: Other Material/Finish is Available on Request.

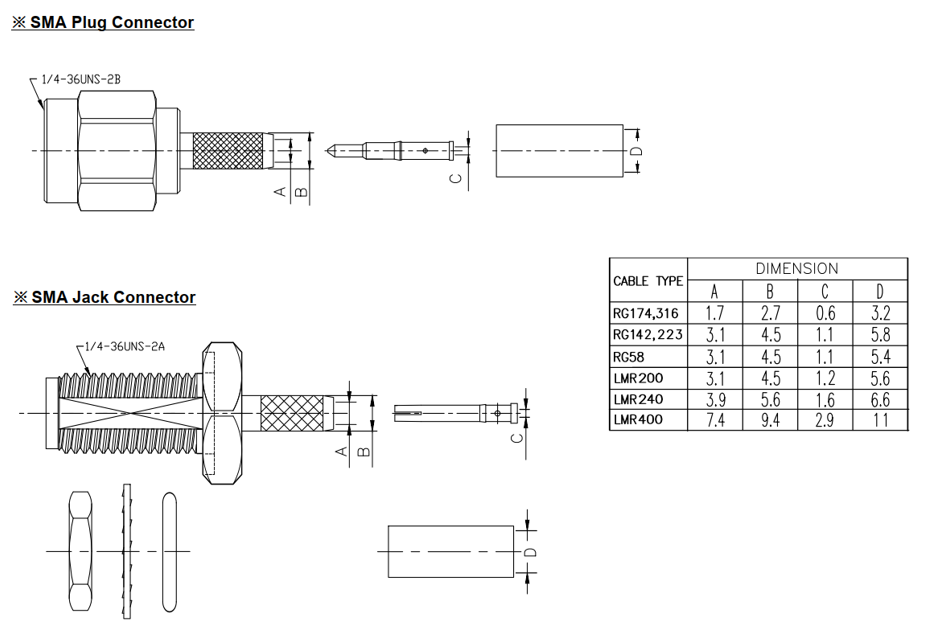

Reference specifications
